spacekit.dashboard.cal

Model Performance + Statistical Analysis for the Hubble Space Telescope’s data calibration pipeline.

NOTE: Click the images on this page to zoom in.

This dashboard includes a simple home page linking to 3 individual pages: model-evaluation, eda, and neural-network-graph.

Model Evaluation

When models are trained using spacekit, performance metrics can be recorded and saved to local disk, then loaded later elsewhere for analysis, including the generation of interactive plots. Under the hood, this is handled by the :doc: Compute module. The dashboard uses plotly and Flask to display these metrics in the browser:

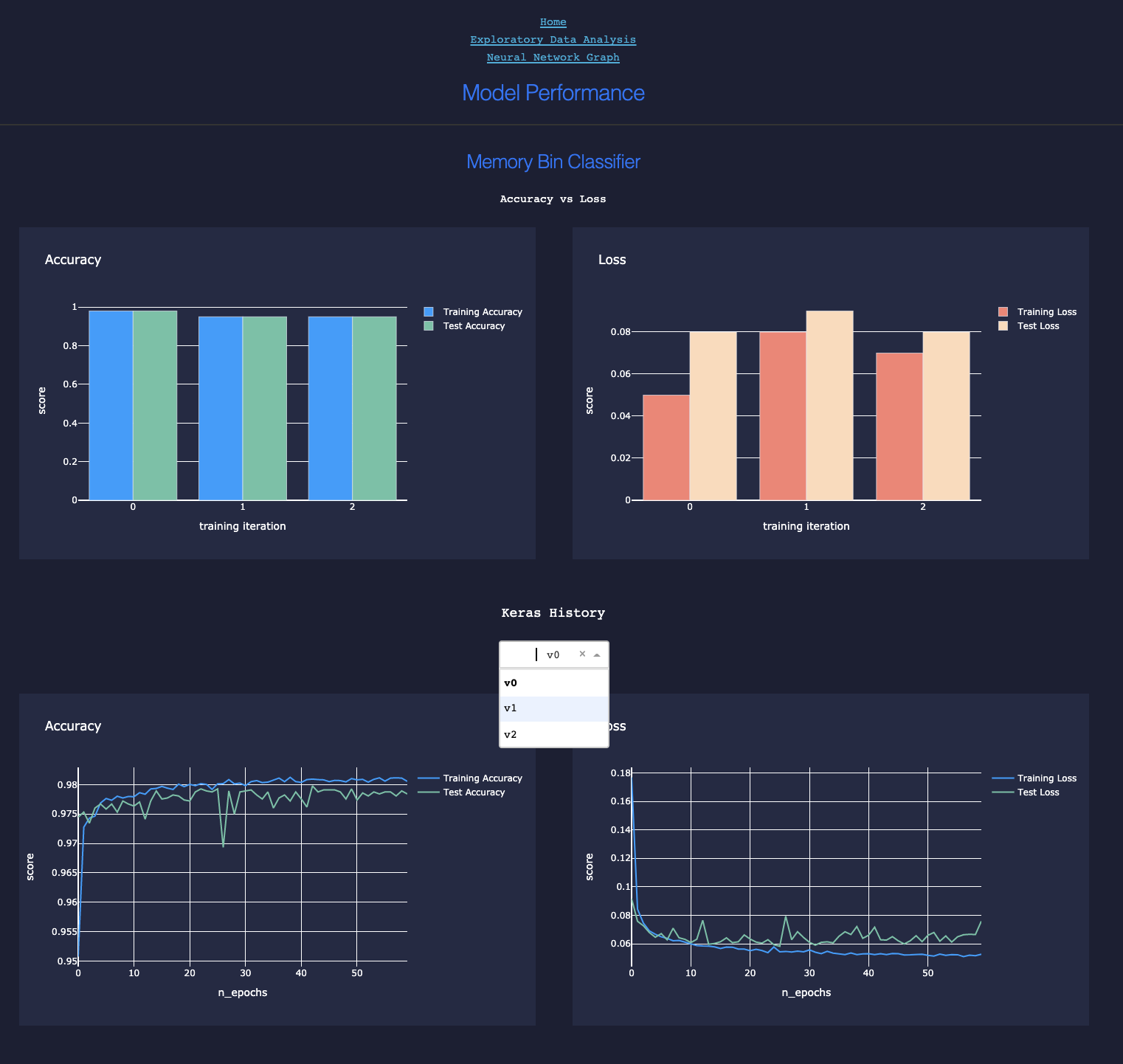

Compare accuracy vs. loss for 3 training iterations or versions of a model

ROC-AUC and Precision-Recall Plots

EDA

Generate interactive scatterplots for comparing linear relationships between two features (or feature vs. target) across groups of another feature.

Scatterplots

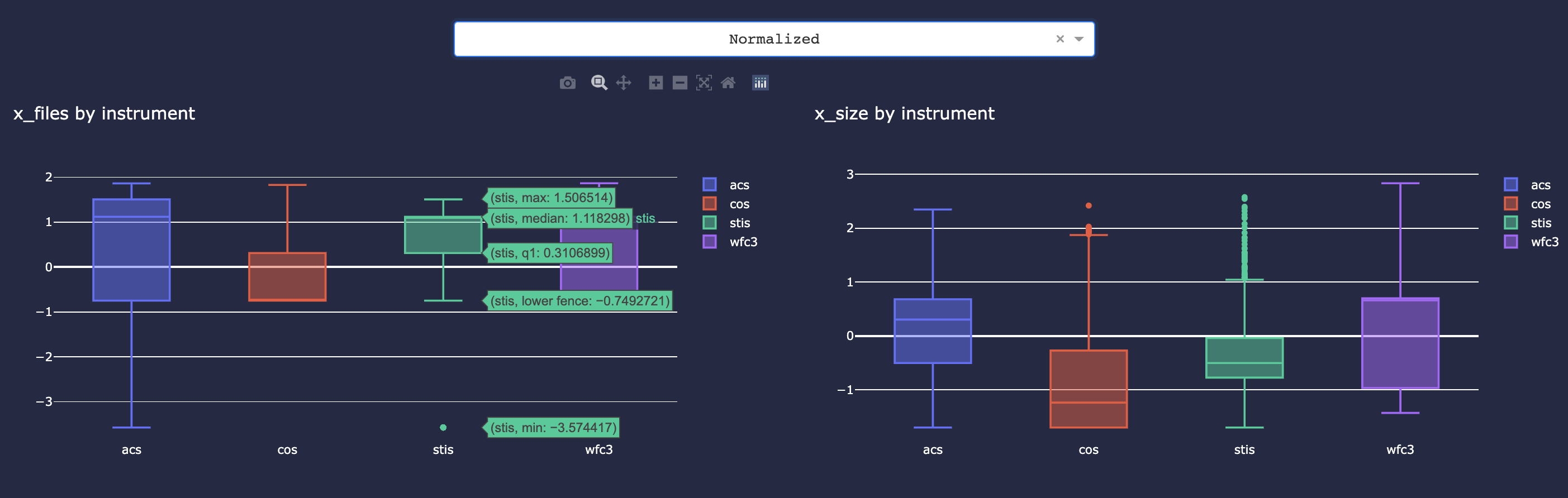

Inspect distribution of a single feature grouped by another feature (e.g. file size by instrument group)

Box Plots

Neural Network Graph

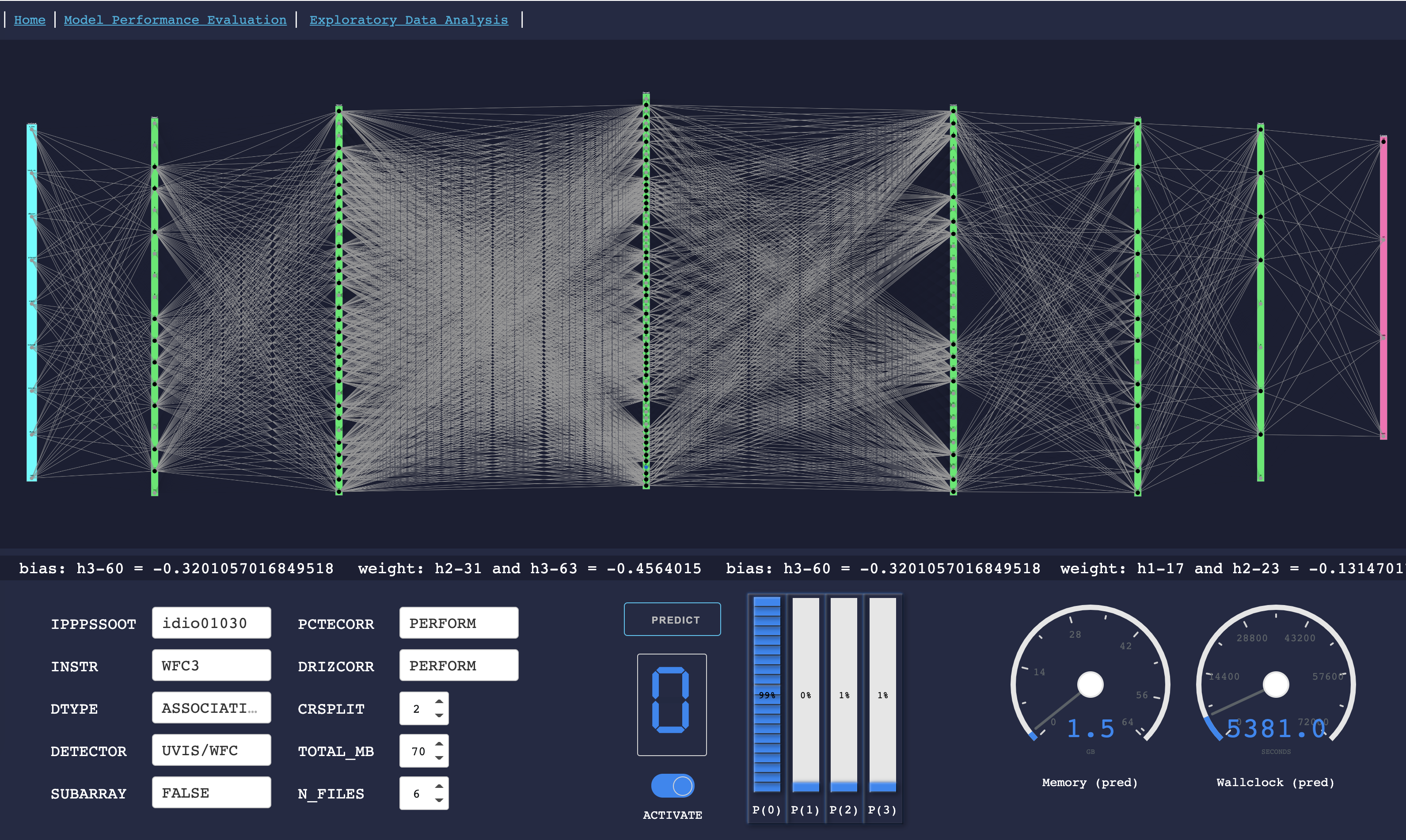

Loads a single saved model and allows you to enter custom feature input values to see what the model would estimate or predict based on those inputs. The visualization displays the visible as well as hidden layers of the neural network and is fully interactive. This allows you to see in detail the exact weights and bias for every single node in the network. The inspiration for creating this type of visual was originally intended for an educational demonstration for my non-data scientist colleagues in order to remove some of the mystery behind how a neural network makes decisions in real-time to calculate an output’s probability.
